Channels in the 2.4-GHz ISM Band
In the 2.4-GHz ISM band, the frequency space is divided up into 14 channels, numbered 1 through 14. With the exception of channel 14, the channels are spaced 5 MHz apart.
IEEE 802.11 Channel Layout in the 2.4-GHz Band
Channel Frequency (GHz)
1 2.412
2 2.417
3 2.422
4 2.427
5 2.432
6 2.437
7 2.442
8 2.447
9 2.452
10 2.457
11 2.462
12 2.467
13 2.472
14 2.484
Channels in the 5-GHz U-NII Bands
Recall that the 5-GHz band is organized as four separate, smaller bands: U-NII-1, U-NII-2, U-NII-2 Extended, and U-NII-3. The bands are all divided into channels that are 20 MHz apart.
IEEE 802.11 Channel Layout in the 5-GHz Bands
Band Channel Frequency (GHz)
U-NII-1 36 5.180
40 5.200
44 5.220
48 5.240
U-NII-2 52 5.260
56 5.280
60 5.300
64 5.320
U-NII-2 Extended 100 5.500
104 5.520
108 5.540
112 5.560
116 5.580
120 5.600
124 5.620
128 5.640
132 5.660
136 5.680
140 5.700
U-NII-3 149 5.475
153 5.765
157 5.785
161 5.805
There's a feature on a Cisco WLC (started on version 7.5) where you can profile wireless devices and enforce a local policy. It's like running a mini version of Cisco ISE on a WLC. My lab WLC is running 8.0 and it has 156 built-in profiles . These can be verified using the show sysinfo and show profiling policy summary command.
(Cisco Controller) >show sysinfo
Manufacturer's Name.............................. Cisco Systems Inc.
Product Name..................................... Cisco Controller
Product Version.................................. 8.0.133.0
Bootloader Version............................... 1.0.16
Field Recovery Image Version..................... 1.0.0
Firmware Version................................. PIC 16.0
Build Type....................................... DATA + WPS
System Name...................................... WLC1
System Location..................................
System Contact...................................
System ObjectID.................................. 1.3.6.1.4.1.9.1.1279
IP Address....................................... 192.168.1.4
IPv6 Address..................................... ::
Last Reset....................................... Software reset
System Up Time................................... 0 days 0 hrs 6 mins 10 secs
System Timezone Location.........................
System Stats Realtime Interval................... 5
System Stats Normal Interval..................... 180
Configured Country............................... US - United States
Operating Environment............................ Commercial (0 to 40 C)
Internal Temp Alarm Limits....................... 0 to 65 C
Internal Temperature............................. +34 C
External Temperature............................. +40 C
Fan Status....................................... 4300 rpm
State of 802.11b Network......................... Enabled
State of 802.11a Network......................... Enabled
Number of WLANs.................................. 1
Number of Active Clients......................... 0
Burned-in MAC Address............................ 10:F3:11:A5:41:23
Maximum number of APs supported.................. 75
System Nas-Id....................................
WLC MIC Certificate Types........................ SHA1
Cisco Controller) >show profiling ?
policy Display local device classification profile information.
oui-string Display OUI String-Id information.
(Cisco Controller) >show profiling policy ?
summary Display local device classification profile summary.
(Cisco Controller) >show profiling policy summary
Number of Builtin Classification Profiles: 156
ID Name Parent Min CM Valid
==== ================================================ ====== ====== =====
0 Android None 30 Yes
1 Android-Amazon-Kindle 0 40 Yes
2 Android-Asus 0 30 Yes
3 Android-Google 0 40 Yes
4 Android-HTC 0 40 Yes
5 Android-LG 0 40 Yes
6 Android-Micromax 0 40 Yes
7 Android-Motorola 0 40 Yes
8 Android-Motorola-Tablet 7 40 Yes
9 Android-Nook 0 40 Yes
10 Android-Samsung 0 40 Yes
11 Android-Samsung-Galaxy-Note 10 40 Yes
12 Android-Samsung-Galaxy-Phone 10 40 Yes
13 Android-Samsung-Galaxy-Tablet 10 40 Yes
14 Android-Sony-Ericsson 0 40 Yes
15 Android-Sony-Ericsson-Phone 14 40 Yes
16 Android-Sony-Ericsson-Tablet 14 40 Yes
17 Apple-Device None 10 Yes
18 Apple-MacBook 17 20 Yes
19 Apple-iPad 17 20 Yes
20 Apple-iPhone 17 20 Yes
21 Apple-iPod 17 20 Yes
22 Apple-iPod-3 21 10 Yes
23 Aruba-Device None 10 Yes
24 Aruba-AP 23 20 Yes
25 Avaya-Device None 10 Yes
26 Avaya-IP-Phone 25 20 Yes
27 Axis-Device None 10 Yes
28 BlackBerry None 20 Yes
29 Brother-Device None 10 Yes
30 Canon-Device None 10 Yes
31 Cisco-Device None 10 Yes
32 Cisco-Access-Point 31 10 Yes
33 Cisco-AP-Aironet-1130 32 30 Yes
34 Cisco-AP-Aironet-1240 32 30 Yes
35 Cisco-DMP 31 20 Yes
36 Cisco-DMP-4305 35 70 Yes
37 Cisco-DMP-4310 35 70 Yes
38 Cisco-DMP-4400 35 70 Yes
39 Cisco-IP-Phone 31 20 Yes
40 Cisco-IP-Conference-Station-7935 39 70 Yes
41 Cisco-IP-Conference-Station-7936 39 70 Yes
42 Cisco-IP-Conference-Station-7937 39 70 Yes
43 Cisco-IP-Phone-7945G 39 70 Yes
44 Cisco-IP-Phone-7975 39 70 Yes
45 Cisco-IP-Phone-9971 39 70 Yes
46 Linksys-Device 31 20 Yes
47 LinksysWAP54G-Device 46 30 Yes
48 Cisco_CIUS None 10 Yes
49 DLink-Device None 10 Yes
50 DLink-DAP-1522 49 20 Yes
51 Draeger-Device None 10 Yes
52 Enterasys-Device None 10 Yes
53 Epson-Device None 10 Yes
54 HP-Device None 10 Yes
55 HP-JetDirect-Printer 54 30 Yes
56 HP-TouchPad-Tablet 54 30 Yes
57 HTC-Device None 10 Yes
58 HTC-Phone 57 20 Yes
59 HTC-Windows-Phone 58 70 Yes
60 Konica-Device None 10 Yes
61 Lexmark-Device None 10 Yes
62 Lexmark-Printer-E260dn 61 30 Yes
63 Microsoft-Device None 10 Yes
64 Microsoft-Surface-Tablet 63 100 Yes
65 Microsoft-Surface-RT-Tablet 64 100 Yes
66 XBOX360 63 20 Yes
67 MotorolaMobile-Device None 10 Yes
68 MotorolaDroid-Device 67 20 Yes
69 Netgear-Device None 10 Yes
70 NintendoWII None 10 Yes
71 Nokia-Device None 20 Yes
72 Nokia-Smart-Phone 71 40 Yes
73 Nokia-Windows-Phone 72 70 Yes
74 Nortel-Device None 10 Yes
75 Nortel-IP-Phone-2000-Series 74 20 Yes
76 Nortel-Phone None 10 Yes
77 Philips-Device None 10 Yes
78 Polycom-Device None 10 Yes
79 RICOH-Device None 10 Yes
80 Samsung-Device None 10 Yes
81 Samsung-Phone 80 20 Yes
82 Samsung-Windows-Phone 81 70 Yes
83 SonyPS3 None 10 Yes
84 SymbianOS-Device None 10 Yes
85 Trendnet-Device None 10 Yes
86 Trendnet-Camera 85 20 Yes
87 VMWare-Device None 10 Yes
88 Vizio-Device None 10 Yes
89 WYSE-Device None 10 Yes
90 Workstation None 10 Yes
91 ChromeBook-Workstation 90 10 Yes
92 FreeBSD-Workstation 90 10 Yes
93 Linux-Workstation 90 10 Yes
94 CentOS-Workstation 93 20 Yes
95 Debian-Workstation 93 20 Yes
96 Fedora-Workstation 93 20 Yes
97 Gentoo-Workstation 93 20 Yes
98 Kubuntu-Workstation 93 20 Yes
99 LinuxMint-Workstation 93 20 Yes
100 Mandriva-Workstation 93 20 Yes
101 OracleEnterpriseLinux-Workstation 93 20 Yes
102 PCLinuxOS-Workstation 93 20 Yes
103 RedHat-Workstation 93 20 Yes
104 SUSE-Workstation 93 20 Yes
105 Ubuntu-Workstation 93 20 Yes
106 Xandros-Workstation 93 20 Yes
107 Macintosh-Workstation 90 10 Yes
108 OS_X-Workstation 107 20 Yes
109 OS_X_Leopard-Workstation 108 30 Yes
110 OS_X_Lion-Workstation 108 30 Yes
111 OS_X_Mavericks-Workstation 108 30 Yes
112 OS_X_MountainLion-Workstation 108 30 Yes
113 OS_X_SnowLeopard-Workstation 108 30 Yes
114 OS_X_Tiger-Workstation 108 30 Yes
115 Microsoft-Workstation 90 10 Yes
116 Vista-Workstation 115 20 Yes
117 Windows7-Workstation 115 20 Yes
118 Windows8-Workstation 115 20 Yes
119 WindowsXP-Workstation 115 20 Yes
120 OpenBSD-Workstation 90 10 Yes
121 Sun-Workstation 90 10 Yes
122 Solaris-Workstation 121 20 Yes
123 Xerox-Device None 10 Yes
124 Xerox-ColorQube-8700S 123 30 Yes
125 Xerox-ColorQube-8700XF 123 30 Yes
126 Xerox-ColorQube-8900X 123 30 Yes
127 Xerox-ColorQube-9302 123 30 Yes
128 Xerox-ColorQube-9303 123 30 Yes
129 Xerox-Phaser-6700DT 123 30 Yes
130 Xerox-Printer-Phaser3250 123 30 Yes
131 Xerox-WorkCentre-5150 123 30 Yes
132 Xerox-WorkCentre-5325 123 30 Yes
133 Xerox-WorkCentre-5330 123 30 Yes
134 Xerox-WorkCentre-5335 123 30 Yes
135 Xerox-WorkCentre-5740 123 30 Yes
136 Xerox-WorkCentre-5745 123 30 Yes
137 Xerox-WorkCentre-5775 123 30 Yes
138 Xerox-WorkCentre-5845 123 30 Yes
139 Xerox-WorkCentre-5855 123 30 Yes
140 Xerox-WorkCentre-5865 123 30 Yes
141 Xerox-WorkCentre-5875 123 30 Yes
142 Xerox-WorkCentre-5890 123 30 Yes
143 Xerox-WorkCentre-6605DN 123 30 Yes
144 Xerox-WorkCentre-7125 123 30 Yes
145 Xerox-WorkCentre-7220 123 30 Yes
146 Xerox-WorkCentre-7225 123 30 Yes
147 Xerox-WorkCentre-7525 123 30 Yes
148 Xerox-WorkCentre-7530 123 30 Yes
149 Xerox-WorkCentre-7545 123 30 Yes
150 Xerox-WorkCentre-7765 123 30 Yes
151 Xerox-WorkCentre-7830 123 30 Yes
152 Xerox-WorkCentre-7835 123 30 Yes
153 Xerox-WorkCentre-7845 123 30 Yes
154 Xerox-WorkCentre-7855 123 30 Yes
155 Xerox-WorkCentre-Pro-245 123 30 Yes

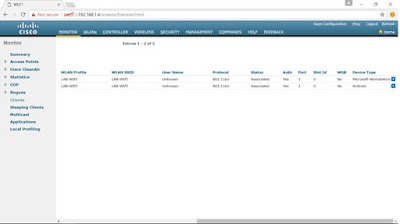

Scroll further to the right and look under the last column Device Type.
You can use the show client summary devicetype command to view the same output in CLI.
(Cisco Controller) >show client ?
ap Displays information for all clients on a Cisco AP.
calls Displays call information.
ccx Display Cisco Client Extension(CCX) diagnostic options.
detail Displays detailed information for a client by mac address.
location-calibration Displays clients configured for location calibration
probing Displays probing clients only
roam-history Displays roam history information for a client by mac address.
state Displays policy manager state information for client.
summary Displays active clients.
tclas Displays TCLAS associated with a client and User Priority
tsm Displays traffic stream metrics for this client
username Displays detailed information for a client by name.
voice-diag Voice Diagnostics show commands
wifiDirect-stats Displays Wifi Direct client stats
wlan Displays Clients in a given WLAN
(Cisco Controller) >show client summary ?
<ssid / ip / username / devicetype> Displays active clients selective details on anyone (OR) all of parameters <ssid, ip, username, devicetype> requested in any order.
(Cisco Controller) >show client summary devicetype
Number of Clients................................ 5
MAC Address AP Name Status Device Type
----------------- ---------------- ------------- --------------------------------
60:45:bd:f3:b9:44 APf872.eaa6.e203 Associated Microsoft-Workstation
94:e9:79:e6:96:4d APf872.eaa6.e203 Associated Microsoft-Workstation // MY WIN 10 PC
d0:17:c2:4c:4a:ba APf872.eaa6.e203 Associated Android
d0:25:98:90:1c:d9 APf872.eaa6.e203 Associated Nortel-Phone
e4:ce:8f:23:c8:ac APf872.eaa6.e203 Associated Apple-Device // MY IPHONE6
C:\Users\User>ipconfig
Windows IP Configuration
Wireless LAN adapter Wi-Fi:
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Qualcomm Atheros QCA9377 Wireless Network Adapter
Physical Address. . . . . . . . . : 94-E9-79-E6-96-4D
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes
Link-local IPv6 Address . . . . . : fe80::a026:ea0:2d87:a41%21(Preferred)
IPv4 Address. . . . . . . . . . . : 192.168.1.7(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Lease Obtained. . . . . . . . . . : Saturday, 8 April 2017 11:23:01 PM
Lease Expires . . . . . . . . . . : Sunday, 9 April 2017 11:23:01 PM
Default Gateway . . . . . . . . . : 192.168.1.1
DHCP Server . . . . . . . . . . . : 1.1.1.1
DHCPv6 IAID . . . . . . . . . . . : 127199609
DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-1F-DC-29-96-A8-1E-84-0B-6F-92
DNS Servers . . . . . . . . . . . : fec0:0:0:ffff::1%1
fec0:0:0:ffff::2%1
fec0:0:0:ffff::3%1
NetBIOS over Tcpip. . . . . . . . : Enabled
You can use the show client detail <MAC-ADDRESS> to view the same output in CLI.
(Cisco Controller) >show client ?
ap Displays information for all clients on a Cisco AP.
calls Displays call information.
ccx Display Cisco Client Extension(CCX) diagnostic options.
detail Displays detailed information for a client by mac address.
location-calibration Displays clients configured for location calibration
probing Displays probing clients only
roam-history Displays roam history information for a client by mac address.
state Displays policy manager state information for client.
summary Displays active clients.
tclas Displays TCLAS associated with a client and User Priority
tsm Displays traffic stream metrics for this client
username Displays detailed information for a client by name.
voice-diag Voice Diagnostics show commands
wifiDirect-stats Displays Wifi Direct client stats
wlan Displays Clients in a given WLAN
(Cisco Controller) >show client detail ?
<MAC addr> Enter a MAC address.
(Cisco Controller) >show client detail 94:e9:79:e6:96:4d
Client MAC Address............................... 94:e9:79:e6:96:4d
Client Username ................................. N/A
AP MAC Address................................... 0c:68:03:d7:bf:90
AP Name.......................................... APf872.eaa6.e203
AP radio slot Id................................. 1
Client State..................................... Associated
Client User Group................................
Client NAC OOB State............................. Access
Wireless LAN Id.................................. 1
Wireless LAN Network Name (SSID)................. LAB-WIFI
Wireless LAN Profile Name........................ LAB-WIFI
Hotspot (802.11u)................................ Not Supported
BSSID............................................ 0c:68:03:d7:bf:9f
Connected For ................................... 40 secs
Channel.......................................... 149
IP Address....................................... 192.168.1.7
Gateway Address.................................. 192.168.1.1
Netmask.......................................... 255.255.255.0
IPv6 Address..................................... fe80::a026:ea0:2d87:a41
Association Id................................... 1
Authentication Algorithm......................... Open System
Reason Code...................................... 1
Status Code...................................... 0
Session Timeout.................................. 60
Client CCX version............................... No CCX support
QoS Level........................................ Silver
Avg data Rate.................................... 0
Burst data Rate.................................. 0
Avg Real time data Rate.......................... 0
Burst Real Time data Rate........................ 0
802.1P Priority Tag.............................. disabled
CTS Security Group Tag........................... Not Applicable
KTS CAC Capability............................... No
WMM Support...................................... Enabled
APSD ACs....................................... BK BE VI VO
Power Save....................................... OFF
Supported Rates.................................. 6.0,9.0,12.0,18.0,24.0,36.0,
............................................. 48.0,54.0
Mobility State................................... Local
Mobility Move Count.............................. 0
Security Policy Completed........................ Yes
Policy Manager State............................. RUN
Policy Manager Rule Created...................... Yes
Audit Session ID................................. none
AAA Role Type.................................... none
Local Policy Applied............................. POLICY-MICROSOFT
IPv4 ACL Name.................................... none
FlexConnect ACL Applied Status................... Unavailable
IPv4 ACL Applied Status.......................... Unavailable
IPv6 ACL Name.................................... none
IPv6 ACL Applied Status.......................... Unavailable
Layer2 ACL Name.................................. none
Layer2 ACL Applied Status........................ Unavailable
mDNS Status...................................... Enabled
mDNS Profile Name................................ default-mdns-profile
No. of mDNS Services Advertised.................. 0
Policy Type...................................... N/A
Encryption Cipher................................ None
Protected Management Frame ...................... No
Management Frame Protection...................... No
EAP Type......................................... Unknown
Interface........................................ management
VLAN............................................. 0
Quarantine VLAN.................................. 0
Access VLAN...................................... 0
Local Bridging VLAN.............................. 0
Client Capabilities:
CF Pollable................................ Not implemented
CF Poll Request............................ Not implemented
Short Preamble............................. Not implemented
PBCC....................................... Not implemented
Channel Agility............................ Not implemented
Listen Interval............................ 1
Fast BSS Transition........................ Not implemented
11v Support................................ Not Supported
Client Wifi Direct Capabilities:
WFD capable................................ No
Manged WFD capable......................... No
Cross Connection Capable................... No
Support Concurrent Operation............... No
Fast BSS Transition Details:
Client Statistics:
Number of Bytes Received................... 0
Number of Bytes Sent....................... 0
Total Number of Bytes Sent................. 0
Total Number of Bytes Recv................. 0
Number of Bytes Sent (last 90s)............ 240377
Number of Bytes Recv (last 90s)............ 87463
Number of Packets Received................. 0
Number of Packets Sent..................... 0
Number of Interim-Update Sent.............. 0
Number of EAP Id Request Msg Timeouts...... 0
Number of EAP Id Request Msg Failures...... 0
Number of EAP Request Msg Timeouts......... 0
Number of EAP Request Msg Failures......... 0
Number of EAP Key Msg Timeouts............. 0
Number of EAP Key Msg Failures............. 0
Number of Data Retries..................... 0
Number of RTS Retries...................... 0
Number of Duplicate Received Packets....... 0
Number of Decrypt Failed Packets........... 0
Number of Mic Failured Packets............. 0
Number of Mic Missing Packets.............. 0
Number of RA Packets Dropped............... 0
Number of Policy Errors.................... 0
Radio Signal Strength Indicator............ Unavailable
Signal to Noise Ratio...................... Unavailable
Client Rate Limiting Statistics:
Number of Data Packets Received............ 0
Number of Data Rx Packets Dropped.......... 0
Number of Data Bytes Received.............. 0
Number of Data Rx Bytes Dropped............ 0
Number of Realtime Packets Received........ 0
Number of Realtime Rx Packets Dropped...... 0
Number of Realtime Bytes Received.......... 0
Number of Realtime Rx Bytes Dropped........ 0
Number of Data Packets Sent................ 0
Number of Data Tx Packets Dropped.......... 0
Number of Data Bytes Sent.................. 0
Number of Data Tx Bytes Dropped............ 0
Number of Realtime Packets Sent............ 0
Number of Realtime Tx Packets Dropped...... 0
Number of Realtime Bytes Sent.............. 0
Number of Realtime Tx Bytes Dropped........ 0
Nearby AP Statistics:
APf872.eaa6.e203(slot 0)
antenna0: 99 secs ago.................... -42 dBm
antenna1: 99 secs ago.................... -42 dBm
APf872.eaa6.e203(slot 1)
antenna0: 39 secs ago.................... -36 dBm
antenna1: 39 secs ago.................... -38 dBm
DNS Server details:
DNS server IP ............................. 0.0.0.0
DNS server IP ............................. 0.0.0.0
Assisted Roaming Prediction List details:
Client Dhcp Required: True
Allowed (URL)IP Addresses
-------------------------
AVC Profile Name: ............................... none
My Windows machine was disconnected after 60 seconds which was monitored from the continuous ping (Destination host unreachable).
In the 2.4-GHz ISM band, the frequency space is divided up into 14 channels, numbered 1 through 14. With the exception of channel 14, the channels are spaced 5 MHz apart.
IEEE 802.11 Channel Layout in the 2.4-GHz Band
Channel Frequency (GHz)
1 2.412
2 2.417
3 2.422
4 2.427
5 2.432
6 2.437
7 2.442
8 2.447
9 2.452
10 2.457
11 2.462
12 2.467
13 2.472
14 2.484
Channels in the 5-GHz U-NII Bands
Recall that the 5-GHz band is organized as four separate, smaller bands: U-NII-1, U-NII-2, U-NII-2 Extended, and U-NII-3. The bands are all divided into channels that are 20 MHz apart.
IEEE 802.11 Channel Layout in the 5-GHz Bands
Band Channel Frequency (GHz)
U-NII-1 36 5.180
40 5.200
44 5.220
48 5.240
U-NII-2 52 5.260
56 5.280
60 5.300
64 5.320
U-NII-2 Extended 100 5.500
104 5.520
108 5.540
112 5.560
116 5.580
120 5.600
124 5.620
128 5.640
132 5.660
136 5.680
140 5.700
U-NII-3 149 5.475
153 5.765
157 5.785
161 5.805
There's a feature on a Cisco WLC (started on version 7.5) where you can profile wireless devices and enforce a local policy. It's like running a mini version of Cisco ISE on a WLC. My lab WLC is running 8.0 and it has 156 built-in profiles . These can be verified using the show sysinfo and show profiling policy summary command.
(Cisco Controller) >show sysinfo
Manufacturer's Name.............................. Cisco Systems Inc.
Product Name..................................... Cisco Controller
Product Version.................................. 8.0.133.0
Bootloader Version............................... 1.0.16
Field Recovery Image Version..................... 1.0.0
Firmware Version................................. PIC 16.0
Build Type....................................... DATA + WPS
System Name...................................... WLC1
System Location..................................
System Contact...................................
System ObjectID.................................. 1.3.6.1.4.1.9.1.1279
IP Address....................................... 192.168.1.4
IPv6 Address..................................... ::
Last Reset....................................... Software reset
System Up Time................................... 0 days 0 hrs 6 mins 10 secs
System Timezone Location.........................
System Stats Realtime Interval................... 5
System Stats Normal Interval..................... 180
Configured Country............................... US - United States
Operating Environment............................ Commercial (0 to 40 C)
Internal Temp Alarm Limits....................... 0 to 65 C
Internal Temperature............................. +34 C
External Temperature............................. +40 C
Fan Status....................................... 4300 rpm
State of 802.11b Network......................... Enabled
State of 802.11a Network......................... Enabled
Number of WLANs.................................. 1
Number of Active Clients......................... 0
Burned-in MAC Address............................ 10:F3:11:A5:41:23
Maximum number of APs supported.................. 75
System Nas-Id....................................
WLC MIC Certificate Types........................ SHA1
Cisco Controller) >show profiling ?
policy Display local device classification profile information.
oui-string Display OUI String-Id information.
(Cisco Controller) >show profiling policy ?
summary Display local device classification profile summary.
(Cisco Controller) >show profiling policy summary
Number of Builtin Classification Profiles: 156
ID Name Parent Min CM Valid
==== ================================================ ====== ====== =====
0 Android None 30 Yes
1 Android-Amazon-Kindle 0 40 Yes
2 Android-Asus 0 30 Yes
3 Android-Google 0 40 Yes
4 Android-HTC 0 40 Yes
5 Android-LG 0 40 Yes
6 Android-Micromax 0 40 Yes
7 Android-Motorola 0 40 Yes
8 Android-Motorola-Tablet 7 40 Yes
9 Android-Nook 0 40 Yes
10 Android-Samsung 0 40 Yes
11 Android-Samsung-Galaxy-Note 10 40 Yes
12 Android-Samsung-Galaxy-Phone 10 40 Yes
13 Android-Samsung-Galaxy-Tablet 10 40 Yes
14 Android-Sony-Ericsson 0 40 Yes
15 Android-Sony-Ericsson-Phone 14 40 Yes
16 Android-Sony-Ericsson-Tablet 14 40 Yes
17 Apple-Device None 10 Yes
18 Apple-MacBook 17 20 Yes
19 Apple-iPad 17 20 Yes
20 Apple-iPhone 17 20 Yes
21 Apple-iPod 17 20 Yes
22 Apple-iPod-3 21 10 Yes
23 Aruba-Device None 10 Yes
24 Aruba-AP 23 20 Yes
25 Avaya-Device None 10 Yes
26 Avaya-IP-Phone 25 20 Yes
27 Axis-Device None 10 Yes
28 BlackBerry None 20 Yes
29 Brother-Device None 10 Yes
30 Canon-Device None 10 Yes
31 Cisco-Device None 10 Yes
32 Cisco-Access-Point 31 10 Yes
33 Cisco-AP-Aironet-1130 32 30 Yes
34 Cisco-AP-Aironet-1240 32 30 Yes
35 Cisco-DMP 31 20 Yes
36 Cisco-DMP-4305 35 70 Yes
37 Cisco-DMP-4310 35 70 Yes
38 Cisco-DMP-4400 35 70 Yes
39 Cisco-IP-Phone 31 20 Yes
40 Cisco-IP-Conference-Station-7935 39 70 Yes
41 Cisco-IP-Conference-Station-7936 39 70 Yes
42 Cisco-IP-Conference-Station-7937 39 70 Yes
43 Cisco-IP-Phone-7945G 39 70 Yes
44 Cisco-IP-Phone-7975 39 70 Yes
45 Cisco-IP-Phone-9971 39 70 Yes
46 Linksys-Device 31 20 Yes
47 LinksysWAP54G-Device 46 30 Yes
48 Cisco_CIUS None 10 Yes
49 DLink-Device None 10 Yes
50 DLink-DAP-1522 49 20 Yes
51 Draeger-Device None 10 Yes
52 Enterasys-Device None 10 Yes
53 Epson-Device None 10 Yes
54 HP-Device None 10 Yes
55 HP-JetDirect-Printer 54 30 Yes
56 HP-TouchPad-Tablet 54 30 Yes
57 HTC-Device None 10 Yes
58 HTC-Phone 57 20 Yes
59 HTC-Windows-Phone 58 70 Yes
60 Konica-Device None 10 Yes
61 Lexmark-Device None 10 Yes
62 Lexmark-Printer-E260dn 61 30 Yes
63 Microsoft-Device None 10 Yes
64 Microsoft-Surface-Tablet 63 100 Yes
65 Microsoft-Surface-RT-Tablet 64 100 Yes
66 XBOX360 63 20 Yes
67 MotorolaMobile-Device None 10 Yes
68 MotorolaDroid-Device 67 20 Yes
69 Netgear-Device None 10 Yes
70 NintendoWII None 10 Yes
71 Nokia-Device None 20 Yes
72 Nokia-Smart-Phone 71 40 Yes
73 Nokia-Windows-Phone 72 70 Yes
74 Nortel-Device None 10 Yes
75 Nortel-IP-Phone-2000-Series 74 20 Yes
76 Nortel-Phone None 10 Yes
77 Philips-Device None 10 Yes
78 Polycom-Device None 10 Yes
79 RICOH-Device None 10 Yes
80 Samsung-Device None 10 Yes
81 Samsung-Phone 80 20 Yes
82 Samsung-Windows-Phone 81 70 Yes
83 SonyPS3 None 10 Yes
84 SymbianOS-Device None 10 Yes
85 Trendnet-Device None 10 Yes
86 Trendnet-Camera 85 20 Yes
87 VMWare-Device None 10 Yes
88 Vizio-Device None 10 Yes
89 WYSE-Device None 10 Yes
90 Workstation None 10 Yes
91 ChromeBook-Workstation 90 10 Yes
92 FreeBSD-Workstation 90 10 Yes
93 Linux-Workstation 90 10 Yes
94 CentOS-Workstation 93 20 Yes
95 Debian-Workstation 93 20 Yes
96 Fedora-Workstation 93 20 Yes
97 Gentoo-Workstation 93 20 Yes
98 Kubuntu-Workstation 93 20 Yes
99 LinuxMint-Workstation 93 20 Yes
100 Mandriva-Workstation 93 20 Yes
101 OracleEnterpriseLinux-Workstation 93 20 Yes
102 PCLinuxOS-Workstation 93 20 Yes
103 RedHat-Workstation 93 20 Yes
104 SUSE-Workstation 93 20 Yes
105 Ubuntu-Workstation 93 20 Yes
106 Xandros-Workstation 93 20 Yes
107 Macintosh-Workstation 90 10 Yes
108 OS_X-Workstation 107 20 Yes
109 OS_X_Leopard-Workstation 108 30 Yes
110 OS_X_Lion-Workstation 108 30 Yes
111 OS_X_Mavericks-Workstation 108 30 Yes
112 OS_X_MountainLion-Workstation 108 30 Yes
113 OS_X_SnowLeopard-Workstation 108 30 Yes
114 OS_X_Tiger-Workstation 108 30 Yes
115 Microsoft-Workstation 90 10 Yes
116 Vista-Workstation 115 20 Yes
117 Windows7-Workstation 115 20 Yes
118 Windows8-Workstation 115 20 Yes
119 WindowsXP-Workstation 115 20 Yes
120 OpenBSD-Workstation 90 10 Yes
121 Sun-Workstation 90 10 Yes
122 Solaris-Workstation 121 20 Yes
123 Xerox-Device None 10 Yes
124 Xerox-ColorQube-8700S 123 30 Yes
125 Xerox-ColorQube-8700XF 123 30 Yes
126 Xerox-ColorQube-8900X 123 30 Yes
127 Xerox-ColorQube-9302 123 30 Yes
128 Xerox-ColorQube-9303 123 30 Yes
129 Xerox-Phaser-6700DT 123 30 Yes
130 Xerox-Printer-Phaser3250 123 30 Yes
131 Xerox-WorkCentre-5150 123 30 Yes
132 Xerox-WorkCentre-5325 123 30 Yes
133 Xerox-WorkCentre-5330 123 30 Yes
134 Xerox-WorkCentre-5335 123 30 Yes
135 Xerox-WorkCentre-5740 123 30 Yes
136 Xerox-WorkCentre-5745 123 30 Yes
137 Xerox-WorkCentre-5775 123 30 Yes
138 Xerox-WorkCentre-5845 123 30 Yes
139 Xerox-WorkCentre-5855 123 30 Yes
140 Xerox-WorkCentre-5865 123 30 Yes
141 Xerox-WorkCentre-5875 123 30 Yes
142 Xerox-WorkCentre-5890 123 30 Yes
143 Xerox-WorkCentre-6605DN 123 30 Yes
144 Xerox-WorkCentre-7125 123 30 Yes
145 Xerox-WorkCentre-7220 123 30 Yes
146 Xerox-WorkCentre-7225 123 30 Yes
147 Xerox-WorkCentre-7525 123 30 Yes
148 Xerox-WorkCentre-7530 123 30 Yes
149 Xerox-WorkCentre-7545 123 30 Yes
150 Xerox-WorkCentre-7765 123 30 Yes
151 Xerox-WorkCentre-7830 123 30 Yes
152 Xerox-WorkCentre-7835 123 30 Yes
153 Xerox-WorkCentre-7845 123 30 Yes
154 Xerox-WorkCentre-7855 123 30 Yes
155 Xerox-WorkCentre-Pro-245 123 30 Yes
To configure device profiling on WLC, go to WLANs > click on a specific WLAN ID
(SSID) > Advanced.
Tick DHCP Addr.
Assignment under DHCP.
Tick DHCP Profiling
and HTTP Profiling under Local Client Profiling > click Apply.
Connect a wireless device to the SSID. To view wireless
devices associated to the SSID, go to
Monitor > Clients.
Scroll further to the right and look under the last column Device Type.
You can use the show client summary devicetype command to view the same output in CLI.
(Cisco Controller) >show client ?
ap Displays information for all clients on a Cisco AP.
calls Displays call information.
ccx Display Cisco Client Extension(CCX) diagnostic options.
detail Displays detailed information for a client by mac address.
location-calibration Displays clients configured for location calibration
probing Displays probing clients only
roam-history Displays roam history information for a client by mac address.
state Displays policy manager state information for client.
summary Displays active clients.
tclas Displays TCLAS associated with a client and User Priority
tsm Displays traffic stream metrics for this client
username Displays detailed information for a client by name.
voice-diag Voice Diagnostics show commands
wifiDirect-stats Displays Wifi Direct client stats
wlan Displays Clients in a given WLAN
(Cisco Controller) >show client summary ?
<ssid / ip / username / devicetype> Displays active clients selective details on anyone (OR) all of parameters <ssid, ip, username, devicetype> requested in any order.
(Cisco Controller) >show client summary devicetype
Number of Clients................................ 5
MAC Address AP Name Status Device Type
----------------- ---------------- ------------- --------------------------------
60:45:bd:f3:b9:44 APf872.eaa6.e203 Associated Microsoft-Workstation
94:e9:79:e6:96:4d APf872.eaa6.e203 Associated Microsoft-Workstation // MY WIN 10 PC
d0:17:c2:4c:4a:ba APf872.eaa6.e203 Associated Android
d0:25:98:90:1c:d9 APf872.eaa6.e203 Associated Nortel-Phone
e4:ce:8f:23:c8:ac APf872.eaa6.e203 Associated Apple-Device // MY IPHONE6
To create a policy for the Profiled devices, go to Security > Local Policies > New.
Type a Policy Name
(POLICY-MICROSOFT) > click Apply.
Click on the policy to edit.
Find Microsoft Workstation
under Device Type drop-down option > click Add.
Configure the Action that will be enforced by the policy: ACL, VLAN ID, QoS Policy, Session Timeout
and Sleeping Client Timeout. You can only Add up to 16 Device Type per
policy. I've set the Action Session
Timeout to 60 seconds for testing on wireless Windows machines and then click Apply.
Map the policy (POLICY-MICROSOFT) on a WLAN (LAB-WIFI), go
to WLANs > click the WLAN ID.
Under Policy-Mapping
tab > set the Priority Index (type 1) > click Add > click Apply.
I've connected my Windows machine to the SSID LAB-WIFI and it was profiled as a Microsoft-Workstation.
C:\Users\User>ipconfig
Windows IP Configuration
Wireless LAN adapter Wi-Fi:
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Qualcomm Atheros QCA9377 Wireless Network Adapter
Physical Address. . . . . . . . . : 94-E9-79-E6-96-4D
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes
Link-local IPv6 Address . . . . . : fe80::a026:ea0:2d87:a41%21(Preferred)
IPv4 Address. . . . . . . . . . . : 192.168.1.7(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Lease Obtained. . . . . . . . . . : Saturday, 8 April 2017 11:23:01 PM
Lease Expires . . . . . . . . . . : Sunday, 9 April 2017 11:23:01 PM
Default Gateway . . . . . . . . . : 192.168.1.1
DHCP Server . . . . . . . . . . . : 1.1.1.1
DHCPv6 IAID . . . . . . . . . . . : 127199609
DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-1F-DC-29-96-A8-1E-84-0B-6F-92
DNS Servers . . . . . . . . . . . : fec0:0:0:ffff::1%1
fec0:0:0:ffff::2%1
fec0:0:0:ffff::3%1
NetBIOS over Tcpip. . . . . . . . : Enabled
Click on the Client
MAC Addr to view more details and look for Local Policy Applied.
You can use the show client detail <MAC-ADDRESS> to view the same output in CLI.
(Cisco Controller) >show client ?
ap Displays information for all clients on a Cisco AP.
calls Displays call information.
ccx Display Cisco Client Extension(CCX) diagnostic options.
detail Displays detailed information for a client by mac address.
location-calibration Displays clients configured for location calibration
probing Displays probing clients only
roam-history Displays roam history information for a client by mac address.
state Displays policy manager state information for client.
summary Displays active clients.
tclas Displays TCLAS associated with a client and User Priority
tsm Displays traffic stream metrics for this client
username Displays detailed information for a client by name.
voice-diag Voice Diagnostics show commands
wifiDirect-stats Displays Wifi Direct client stats
wlan Displays Clients in a given WLAN
(Cisco Controller) >show client detail ?
<MAC addr> Enter a MAC address.
(Cisco Controller) >show client detail 94:e9:79:e6:96:4d
Client MAC Address............................... 94:e9:79:e6:96:4d
Client Username ................................. N/A
AP MAC Address................................... 0c:68:03:d7:bf:90
AP Name.......................................... APf872.eaa6.e203
AP radio slot Id................................. 1
Client State..................................... Associated
Client User Group................................
Client NAC OOB State............................. Access
Wireless LAN Id.................................. 1
Wireless LAN Network Name (SSID)................. LAB-WIFI
Wireless LAN Profile Name........................ LAB-WIFI
Hotspot (802.11u)................................ Not Supported
BSSID............................................ 0c:68:03:d7:bf:9f
Connected For ................................... 40 secs
Channel.......................................... 149
IP Address....................................... 192.168.1.7
Gateway Address.................................. 192.168.1.1
Netmask.......................................... 255.255.255.0
IPv6 Address..................................... fe80::a026:ea0:2d87:a41
Association Id................................... 1
Authentication Algorithm......................... Open System
Reason Code...................................... 1
Status Code...................................... 0
Session Timeout.................................. 60
Client CCX version............................... No CCX support
QoS Level........................................ Silver
Avg data Rate.................................... 0
Burst data Rate.................................. 0
Avg Real time data Rate.......................... 0
Burst Real Time data Rate........................ 0
802.1P Priority Tag.............................. disabled
CTS Security Group Tag........................... Not Applicable
KTS CAC Capability............................... No
WMM Support...................................... Enabled
APSD ACs....................................... BK BE VI VO
Power Save....................................... OFF
Supported Rates.................................. 6.0,9.0,12.0,18.0,24.0,36.0,
............................................. 48.0,54.0
Mobility State................................... Local
Mobility Move Count.............................. 0
Security Policy Completed........................ Yes
Policy Manager State............................. RUN
Policy Manager Rule Created...................... Yes
Audit Session ID................................. none
AAA Role Type.................................... none
Local Policy Applied............................. POLICY-MICROSOFT
IPv4 ACL Name.................................... none
FlexConnect ACL Applied Status................... Unavailable
IPv4 ACL Applied Status.......................... Unavailable
IPv6 ACL Name.................................... none
IPv6 ACL Applied Status.......................... Unavailable
Layer2 ACL Name.................................. none
Layer2 ACL Applied Status........................ Unavailable
mDNS Status...................................... Enabled
mDNS Profile Name................................ default-mdns-profile
No. of mDNS Services Advertised.................. 0
Policy Type...................................... N/A
Encryption Cipher................................ None
Protected Management Frame ...................... No
Management Frame Protection...................... No
EAP Type......................................... Unknown
Interface........................................ management
VLAN............................................. 0
Quarantine VLAN.................................. 0
Access VLAN...................................... 0
Local Bridging VLAN.............................. 0
Client Capabilities:
CF Pollable................................ Not implemented
CF Poll Request............................ Not implemented
Short Preamble............................. Not implemented
PBCC....................................... Not implemented
Channel Agility............................ Not implemented
Listen Interval............................ 1
Fast BSS Transition........................ Not implemented
11v Support................................ Not Supported
Client Wifi Direct Capabilities:
WFD capable................................ No
Manged WFD capable......................... No
Cross Connection Capable................... No
Support Concurrent Operation............... No
Fast BSS Transition Details:
Client Statistics:
Number of Bytes Received................... 0
Number of Bytes Sent....................... 0
Total Number of Bytes Sent................. 0
Total Number of Bytes Recv................. 0
Number of Bytes Sent (last 90s)............ 240377
Number of Bytes Recv (last 90s)............ 87463
Number of Packets Received................. 0
Number of Packets Sent..................... 0
Number of Interim-Update Sent.............. 0
Number of EAP Id Request Msg Timeouts...... 0
Number of EAP Id Request Msg Failures...... 0
Number of EAP Request Msg Timeouts......... 0
Number of EAP Request Msg Failures......... 0
Number of EAP Key Msg Timeouts............. 0
Number of EAP Key Msg Failures............. 0
Number of Data Retries..................... 0
Number of RTS Retries...................... 0
Number of Duplicate Received Packets....... 0
Number of Decrypt Failed Packets........... 0
Number of Mic Failured Packets............. 0
Number of Mic Missing Packets.............. 0
Number of RA Packets Dropped............... 0
Number of Policy Errors.................... 0
Radio Signal Strength Indicator............ Unavailable
Signal to Noise Ratio...................... Unavailable
Client Rate Limiting Statistics:
Number of Data Packets Received............ 0
Number of Data Rx Packets Dropped.......... 0
Number of Data Bytes Received.............. 0
Number of Data Rx Bytes Dropped............ 0
Number of Realtime Packets Received........ 0
Number of Realtime Rx Packets Dropped...... 0
Number of Realtime Bytes Received.......... 0
Number of Realtime Rx Bytes Dropped........ 0
Number of Data Packets Sent................ 0
Number of Data Tx Packets Dropped.......... 0
Number of Data Bytes Sent.................. 0
Number of Data Tx Bytes Dropped............ 0
Number of Realtime Packets Sent............ 0
Number of Realtime Tx Packets Dropped...... 0
Number of Realtime Bytes Sent.............. 0
Number of Realtime Tx Bytes Dropped........ 0
Nearby AP Statistics:
APf872.eaa6.e203(slot 0)
antenna0: 99 secs ago.................... -42 dBm
antenna1: 99 secs ago.................... -42 dBm
APf872.eaa6.e203(slot 1)
antenna0: 39 secs ago.................... -36 dBm
antenna1: 39 secs ago.................... -38 dBm
DNS Server details:
DNS server IP ............................. 0.0.0.0
DNS server IP ............................. 0.0.0.0
Assisted Roaming Prediction List details:
Client Dhcp Required: True
Allowed (URL)IP Addresses
-------------------------
AVC Profile Name: ............................... none
My Windows machine was disconnected after 60 seconds which was monitored from the continuous ping (Destination host unreachable).
